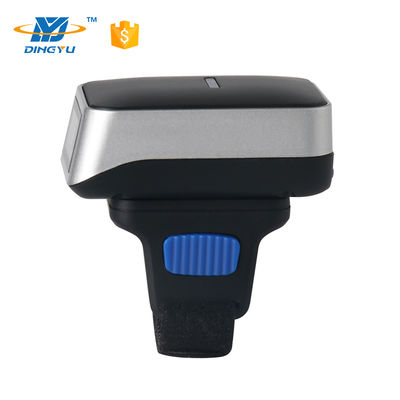

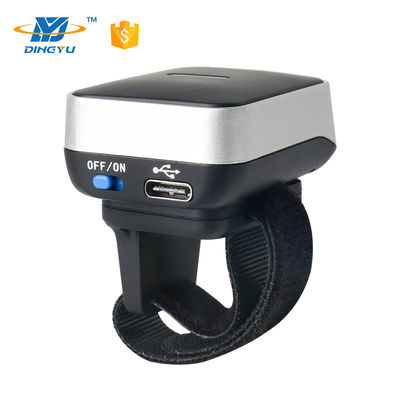

Name: DYscan DI9010-2D Bluetooth Ring Finger Barcode Scanner
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

Главная страница Продукция беспроводной сканер штрих-кода

DYscan DI9010-2D Bluetooth Ring Finger Barcode Scanner

Подробная информация о продукте:

Оплата и доставка Условия:

Количество мин заказа:	1

контакт

Подробное описание продукта

Модель №:	DI9010-2D	Тип интерфейса:	2.4G Bluetooth
Скорость сканирования:	300 разверток/sec	Элемент сканирования:	CMOS
Процессор:	32bit	Время запуска:	750 мс
Разрешение:	3 мили	Глубина поле:	55-350 мм
Режим сканирования:	Режим автозаправочного режима Trigger	Достойность движения:	25cm/s
Печатный контраст:	25%ПК	Окружающий свет:	70000lux
Масса:	35 г без кабеля	Кабель для зарядки:	Тип c
Размеры:	12010440 мм
Выделить:	Bluetooth ring barcode scanner , wireless finger barcode scanner , DYscan DI9010-2D scanner

Ring Finger Wearable Wireless 1D/2D Reader Barcode Scanner for Logistics

Product Overview

The DI9010-2D is a high-performance 2D Bluetooth barcode scanner featuring leading CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset management.

Key Features

Wearable ring finger design for hands-free operation
2.4G Bluetooth wireless connectivity
High-speed scanning at 300 scans per second
32-bit ARM processor for fast processing
Supports both 1D and 2D barcode formats
Lightweight design at just 35g (without cable)
Type-C charging for convenient power management
Multiple scanning modes: Trigger and Auto Sense

Technical Specifications

Attribute	Value
Model NO.	DI9010-2D
Interface Type	2.4G Bluetooth
Scan Speed	300 scans/sec
Scan Element Type	CMOS
CPU	32bit
Startup Time	750ms
Resolution	3mil
Depth of Field	55-350mm
Scan Mode	Trigger Mode, Auto Sense Mode
Prompting Mode	LED Indicating Lamp, Buzzer
Motion Tolerance	25cm/S
Print Contrast	25%PCS
Ambient Light	70000lux
Weight	35g Without Cable
Charging Cable	Type C

Detailed Parameters

Light Source	Lighting: white LED (Automatically adjusts brightness) Aiming: Green LED, wavelength coverage 525nm
CMOS	640×480 CMOS
CPU	ARM 32-bit
Resolution	1D: ≥3mil, 2D: ≥8.7mil @PCS90%
Reading Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Supported Symbologies	1D: Codabar, Code39, Code32, Interleaved 2 of 5, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, and more 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Additional Images

Packaging Information

Package Dimensions: 120×104×40mm
Transport Package: Standard protective packaging

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer with 18 years of field experience. We have a dedicated QC team and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our scanners are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough testing before shipment.

Q3: What is the warranty period?

We offer a 12-month warranty on all our barcode scanners.

Q4: How do you ensure stable performance?

We use flow line production with each product tested at least 4 times before delivery to ensure consistent quality and performance.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM services for specialized requirements.

Q6: What are your company strengths?

As a professional scanner manufacturer, we have dedicated R&D, production, and sales departments with specialized teams ensuring product quality and customer satisfaction.

Q7: Are drivers required for operation?

No, our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring additional drivers.
