Name: DI9010-2D Wearable Bluetooth Barcode Scanner 300 Scans/Sec
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

Главная страница Продукция беспроводной сканер штрих-кода

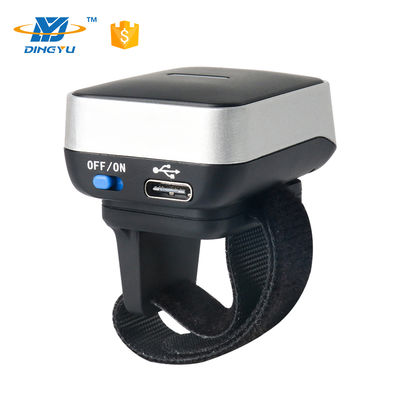

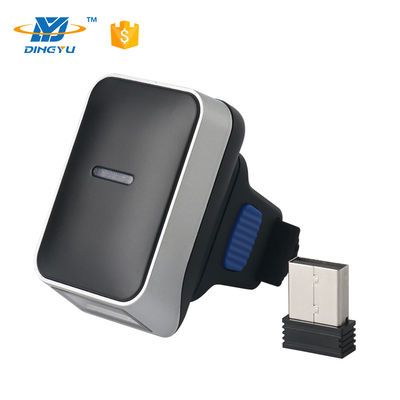

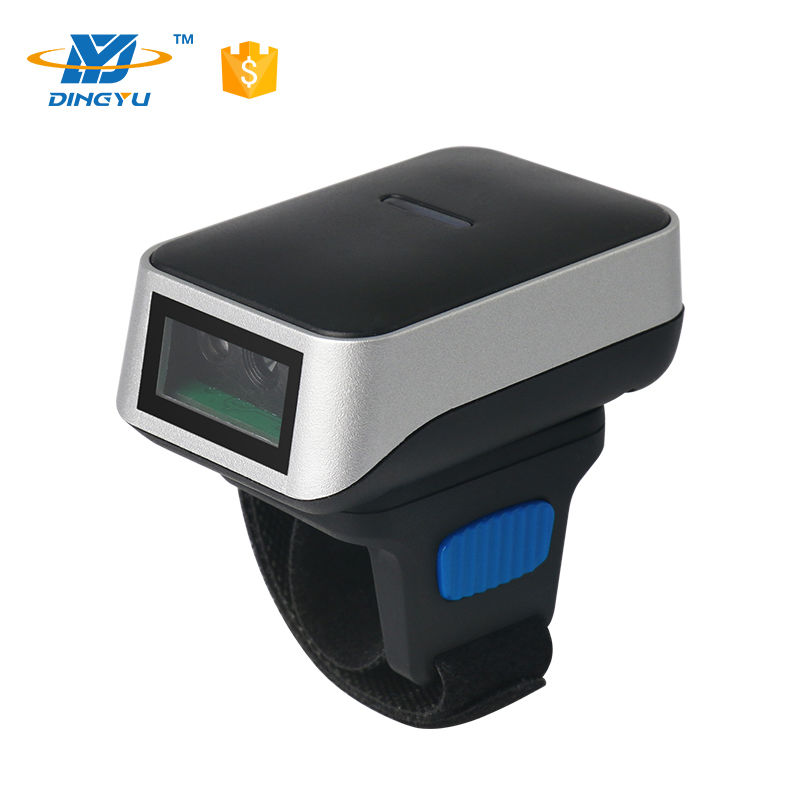

DI9010-2D Wearable Bluetooth Barcode Scanner 300 Scans/Sec

Подробная информация о продукте:

Оплата и доставка Условия:

Количество мин заказа:	1

контакт

Подробное описание продукта

Модель №:	DI9010-2D	Тип интерфейса:	2.4G Bluetooth
Скорость сканирования:	300 разверток/sec	Элемент сканирования:	CMOS
Процессор:	32bit	Время запуска:	750 мс
Разрешение:	3 мили	Глубина поле:	55-350 мм
Режим сканирования:	Режим автозаправочного режима Trigger	Достойность движения:	25cm/s
Печатный контраст:	25%ПК	Окружающий свет:	70000lux
Емкость батареи:	350 мАч	Кабель для зарядки:	Тип c
Зрительный угол:	Горизонтально 40°× вертикально 30°
Выделить:	wearable Bluetooth barcode scanner , wireless barcode scanner 300 scans/sec , Bluetooth barcode scanner with warranty

Portable 2D Wireless Bluetooth Barcode Scanner Can Be Worn Ring Barcode Scanner

Product Specifications

Attribute	Value
Model NO.	DI9010-2D
Interface Type	2.4G Bluetooth
Scan Speed	300 scans/sec
Scan Element Type	CMOS
CPU	32bit
Startup Time	750ms
Resolution	3mil
Depth of Field	55-350mm
Scan Mode	Trigger Mode Auto Sense Mode
Prompting Mode	LED Indicating Lamp Buzzer
Motion Tolerance	25cm/S
Print Contrast	25%PCS
Ambient Light	70000lux
Continuous Working Time	≥3hours
Charging Cable	Type C
Battery Capacity	350mAh
Battery Charging Time	About 1.5 Hours
Transport Package	12010440mm
Specification	12010440mm
Trademark	DYscan
Origin	China

Product Overview

The DI9010-2D is a high-performance 2D Bluetooth barcode scanner featuring leading CMOS image recognition technology. This ring-style wearable scanner easily reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Technical Parameters

Parameter	Specification
Light Source	White LED (auto-adjusting brightness), Green aiming LED (525nm)
CMOS	640×480
CPU	ARM 32-bit
Resolution	1D: ≥3mil, 2D: ≥8.7mil @PCS90%
Reading Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Supported Symbologies	1D: Codabar, Code39, Code128, UPC, EAN, GS1, etc. 2D: PDF417, QR Code, Data Matrix, Aztec

Product Images

Packaging & Shipping

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience. All scanners undergo rigorous testing including engine age tests, wire bend tests, and switch life tests. Products are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

We conduct 1 million wire bend tests and button tests. Every device is tested before shipping.

Q3: What is the warranty period?

12 months warranty.

Q4: How do you maintain stable performance?

Flow line production with each product tested at least 4 times before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom logos and packaging, plus ODM support from our technical team.

Q6: What are your company strengths?

We have dedicated R&D, production, and sales departments with specialized teams for each function.

Q7: Are drivers required?

No drivers needed. Plug-and-play compatibility with Windows, Mac, iOS, Linux, Android, and UNIX systems.
