Name: Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Главная страница Продукция беспроводной сканер штрих-кода

Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800

Подробная информация о продукте:

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	15

контакт

Подробное описание продукта

Скорость сканирования:	65cm/s	Элемент сканирования:	CMOS
Разрешение камеры:	1280*800	Точность чтения:	≥3мл/0,076 мм
Глубина поле:	30-500MM	Печатный контраст:	≥20%
Процессор:	32 бит	Емкость батареи:	1200 мАч
Непрерывное рабочее время:	12ч	Время зарядки:	3.5h
Беспроводное расстояние:	Bluetooth 30m, 2,4 г 100 м	Емкость хранения:	350 КБ (20 000 штрих -кодов)
Масса:	≈70 г	Размеры:	L130mm * W46.5mm * H28.5mm
Рабочая температура:	-20ºC до 55ºC
Выделить:	Wireless Bluetooth barcode scanner , 1D 2D QR barcode scanner , CMOS wireless barcode scanner

Portable High Performance Wireless Bluetooth Barcode Scanner Mini 1D 2D Barcode Scanner

Product Specifications

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Wireless 2.4G Bluetooth
Scan Speed	65cm/S
Scan Element Type	CMOS
Camera	1280*800
Resolution	3mil Code39
Depth of Field	30-500mm
Scan Mode	Manual, Continuous, Auto Scan, Flashing
Print Contrast Signal	20%
CPU	32 Bit
Battery	1200mAh
Continuous Working Time	12h
Charging Time	3.5h
Storage	350kb (Over 20,000 Barcodes)
Dimensions	L130mm * W46.5mm * H28.5mm
Weight	≈70g (without cable)

Key Features

High-performance 1D/2D barcode scanning with CMOS technology
Dual wireless connectivity: Bluetooth (30m) and 2.4G (100m open distance)
Fast scanning at 65cm/s with 3mil resolution
Wide scanning angle (±360° roll, ±60° pitch, ±70° yaw)
Long battery life: 12 hours continuous operation
Rugged design with 1.5m drop resistance
Supports wide range of barcode symbologies including QR codes, PDF417, Data Matrix
Compact and lightweight (130×46.5×28.5mm, 70g)

Technical Parameters

Light Source: White LED (auto-adjust brightness) + Red LED aiming (525nm)

Operating Temperature: -20ºC to 55ºC

Storage Temperature: -20ºC to 60ºC

Humidity Resistance: 5% to 95% (non-condensing)

Interface: Type C

Power Supply: DC5V (47mA standby, 200mA average)

Supported Barcode Types

1D Codes: Codabar, Code39, Code128, UPC, EAN, GS1 Databar, MSI, and more

2D Codes: PDF417, QR Code, Data Matrix, Aztec, Micro QR

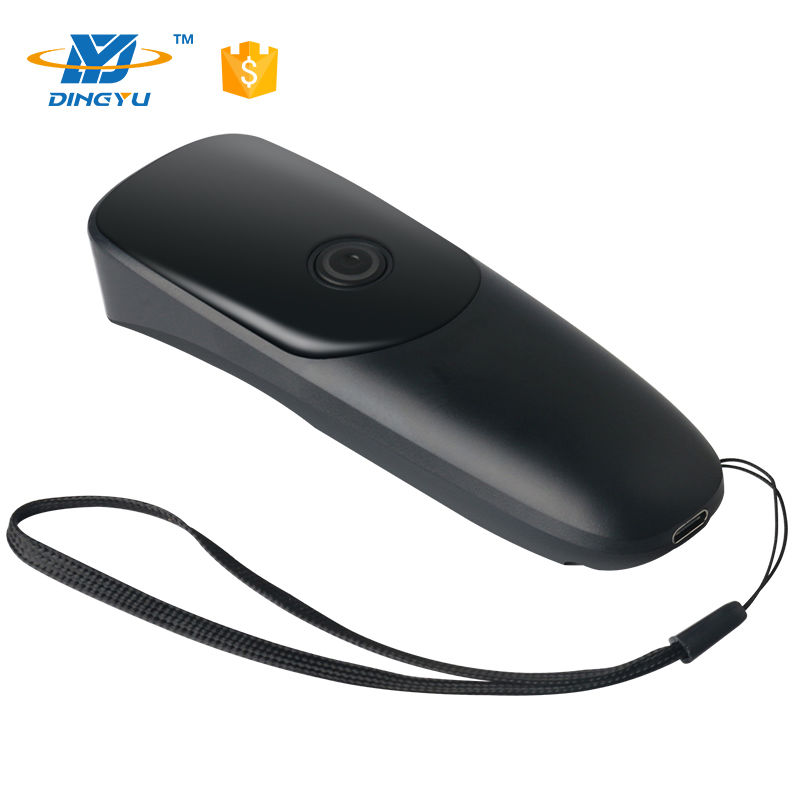

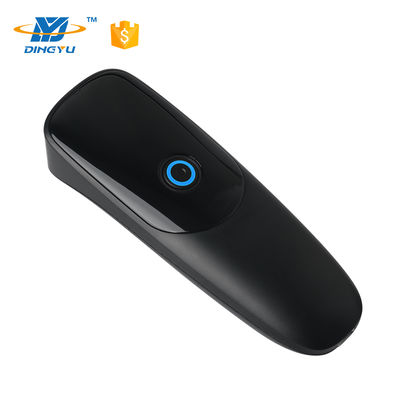

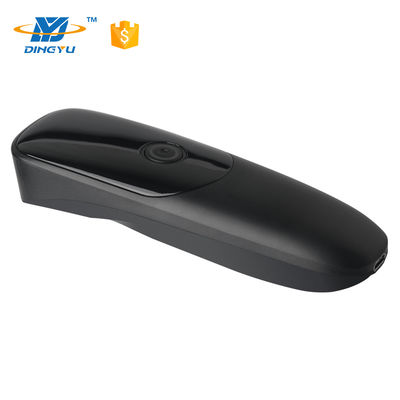

Product Images
