Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height

  • Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
  • Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
  • Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
  • Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
  • Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
  • Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
Подробная информация о продукте:
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: 20
контакт
Подробное описание продукта
Модель №.: DE2390 Тип интерфейса: USB
Скорость сканирования: 65cm/s Элемент сканирования: CMOS
Разрешение: 3 мили/0,076 мм Датчик изображения: 1280*800
Режим сканирования: Ручной, Индукционный, Непрерывный, Инструкция Печатный контраст: 20%
Датчик: КМОП, глобальное воздействие Пиксель: 1 000 000
Глубина поле: 50 мм~750 мм кабель ФФК: 5 см
Высота капли: 1,2 м Размеры: 21.5 мм L* 15.9 мм W * 11.30 мм H
Входная мощность: 3,3 В
Выделить:

1280*800 Image Sensor Barcode Scanner

,

50mm~750mm Depth of Field Barcode Scan Engine

,

1.2m Drop Height Embedded Barcode Reader

Small Embedded 2D Barcode Reader CMOS OCR Passport Barcode Scanner
Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 0

The DE2390 is a high-performance embedded 2D barcode module featuring advanced CMOS image recognition technology. This compact scanner combines a 1 million pixel global camera with excellent reading performance, capable of decoding barcodes from both paper and digital displays. The module also includes OCR functionality for reading ID and passport characters.

Key Features:
  • High-resolution 1280×800 CMOS sensor
  • ARM32-bit processor for fast decoding
  • OCR capability for passport and ID reading
  • Wide reading range: 50mm to 750mm
  • Multiple scan modes including trigger, auto, and continuous
  • Supports extensive 1D and 2D barcode symbologies
  • Robust construction for industrial environments
Technical Specifications:
Parameter Specification
Dimensions 21.5mm (L) × 15.9mm (W) × 11.30mm (H)
Interfaces USB, USB-com (requires driver), TTL
Light Source White LED lighting, Red LED aiming (525nm wavelength)
Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Reading Angle Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Field of View 40° horizontal × 27° vertical
Power Requirements 3.3V (95mA standby, 200mA average decoding current)
Operating Temperature -20°C to 50°C
Supported Symbologies Includes UPC, EAN, Code 128, QR Code, Data Matrix, PDF417, Aztec, and many more
Additional Features:
  • Motion tolerance up to 65cm/s
  • Minimum print contrast: 20% PCS
  • LED and buzzer feedback options
  • Robust construction with vibration resistance (10H@125RPM)
  • Wide operating humidity range: 5% to 95% (non-condensing)
Product Images

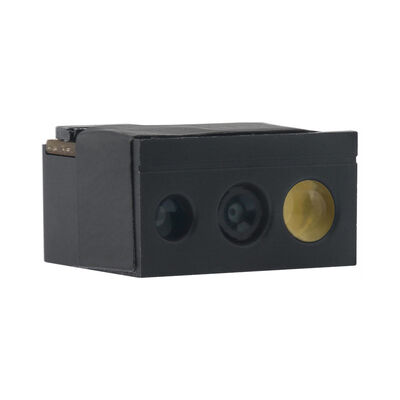

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 1

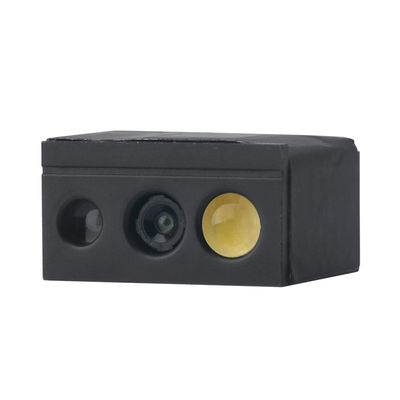

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 2

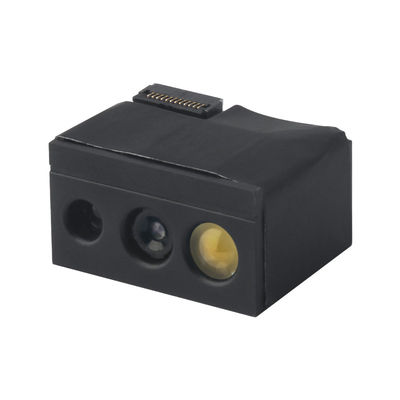

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 3

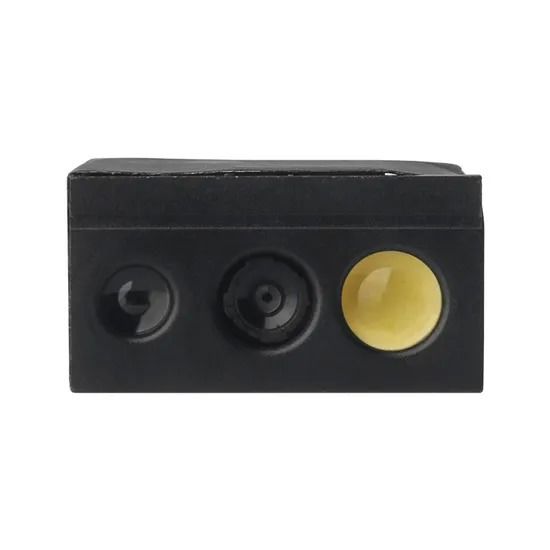

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 4

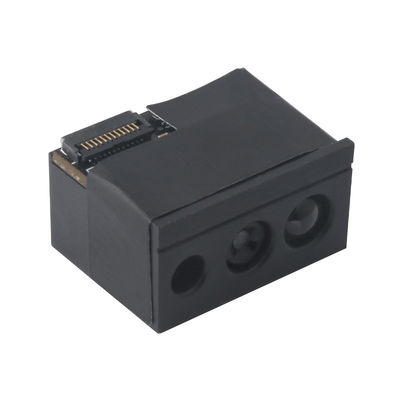

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 5
Packaging & Shipping
Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 6
Certifications
Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height 7
